more details on building the raised beds in the Medicine Wheel garden

03 Thursday Jul 2014

Posted by Delena Rose in garden, medicine wheel

Tags

garden, garden boxes, Medicine Wheel garden, raised beds, vegetable garden

I must apologize for the long delay in getting this post up, especially to the four readers who wrote in early spring asking for more details on building the raised beds in the Medicine Wheel garden. My eleven-month old son is finally taking longer naps -and I am also now able to stay up past his bedtime- so I can now get back to one of my favorite things: blogging and sharing my life with each of you.

In this post, I will go into more detail on how we got the dimensions for the raised bed boxes for those who are interested in building their own. Click here if you need to refresh your memory on the previous post that we did two summers ago on building the raised beds. If you would like your raised bed circle to be smaller or larger you can use what we did here as a guide and plug in your own measurements. On the other hand, if my dimensions suit you just fine, then skip to the end where I will just give you the basic details in a nutshell. Please note that later this summer (or early next spring), we plan to build the second row in the Medicine Wheel garden so this is a work in progress! The next boxes will be a bit shorter and wider and we will be sure to include the dimensions for that when we do it.

How We Calculated the Dimensions for the Boxes:

There was a bit of math involved in getting the dimensions for the layout of the beds. I started with some rough sketches of what I envisioned. As you can see, it looks like a pie. All I needed to do was figure out how large of a pie it should be, how much space I wanted in the center, and decide how wide I wanted the walkways to be in between each bed.

I started from the center and decided that I wanted a 10 foot diameter for the center circle. From there I knew I wanted the row of beds to be 4 feet long. I also knew that I wanted the walkways to be about a foot and a half wide, or 18 inches.

To get the dimensions for the beds, I calculated the circumference of both the center circle and the outer circle. The inner circle gives me the length of wood to cut for the narrow end. I simply subtracted the total amount of space needed for the walkways between each bed and divided what was left by the number of beds I wanted to have.

circumference = pie (3.14) x diameter

center circle: c = 3.14 x 10 = 31.4 or 31 ½ feet

outer circle: c = 3.14 x 18 = 56.52 or 56 ½ feet

I wanted 10 paths at 1 ½ feet wide: 10 x 1.5 = 15 feet in total

Center circle: 31 ½ – 15 = 16.5 feet (left for the narrow end of the beds)

16.5 divided by 10 beds = 1.65 or about 1 ½ feet for the narrow end

outer circle: 56 ½ – 15 = 41.5 feet (left for the wider end of the beds)

41.5 divided by 10 beds = 4 feet for the wider end

Then it was time to cut the wood and get building. We bought 2 x 10 untreated spruce. I chose untreated wood because I did not want any chemicals leaching into my garden soil and into our food. We cut the lengths for each bed: 10 pieces at 1-½ feet (narrow end) 10 pieces at 4 feet (wider end) and 20 more pieces at 4 feet (sides of the boxes)

Cutting the ends on an angle gives the boxes a finished look with no gaps in the corners. Brian is an engineer and did some quick calculations to get the angle: 36 degrees. You could also just use a sliding bevel. Lay your pieces out and use the sliding bevel to record the angle. Then take the sliding bevel to your miter saw and adjust the tilt of your blade to match the angle. Click here to see what a sliding bevel is and how to use one. The magical thing is that all of your cuts will be at the same angle so you only need to adjust your miter saw once. See the picture below: the narrow and wider ends are the longer pieces and the side pieces fit inside. This is the tricky part where you really don’t want to be in a rush: make sure you are cutting you angle in the right direction. I made quite a few mistakes before Brian came and took over so my boxes are actually a bit shorter than planned! It’s worked out all right in the end because we just made sure all of the boxes were the same size.

Once the pieces were cut, Brian screwed them together with deck screws. Then using the 10 feet center circle as our guide, we arranged the boxes in a circle, making sure that we had about 1-1/2 feet between each box for the walkways. This was not exact but once everything was in place it all looked beautiful.

In a Nutshell:

Use 2 x 10 spruce

Cut 10 pieces at 1-½ feet (narrow end)

Cut 10 pieces at 4 feet (wider end)

Cut 20 more pieces at 4 feet (sides of the boxes)

Arrange a box on the ground and use a sliding bevel to record your angle for cutting the ends.

Transfer this angle to your miter saw and cut your ends so that they will fit nicely together.

In the center point of your garden space, measure a small circle with a ten-foot diameter.

Place your boxes around this circle with a 1-1/2 foot space in between. I hope this helps! I would love to hear how your own raised beds turn out!

the Medicine Wheel garden

08 Monday Aug 2011

Posted by Delena Rose in garden, medicine wheel

≈ 6 Comments

Tags

artichoke, broccoli, cabbage, circle garden, dill, garden, leeks, Medicine Wheel garden, nasturtium, Northern Lights Swiss Chard, onions, pumpkin flower, sacred garden, tomato, vegetables, watermelon, zucchini

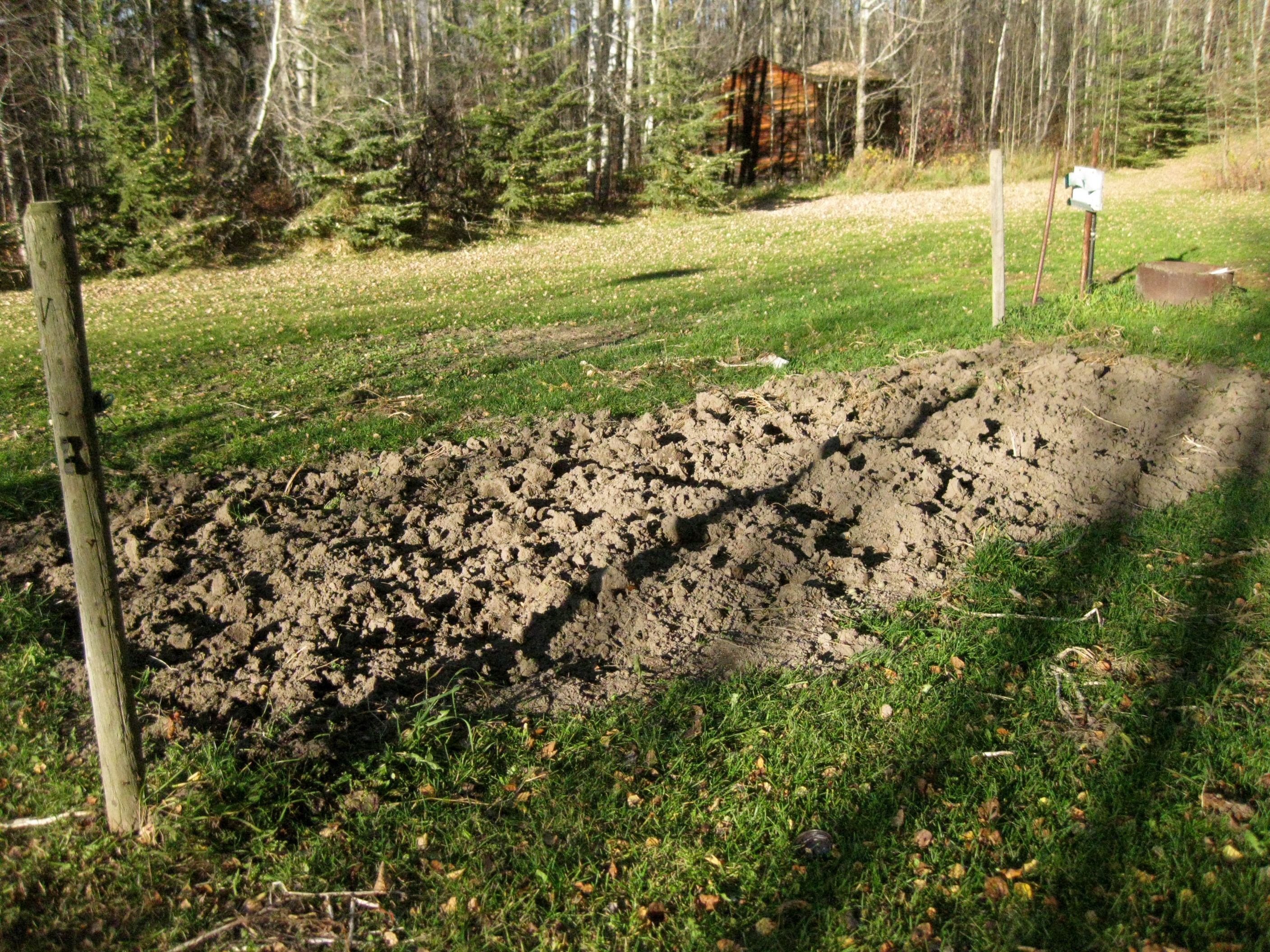

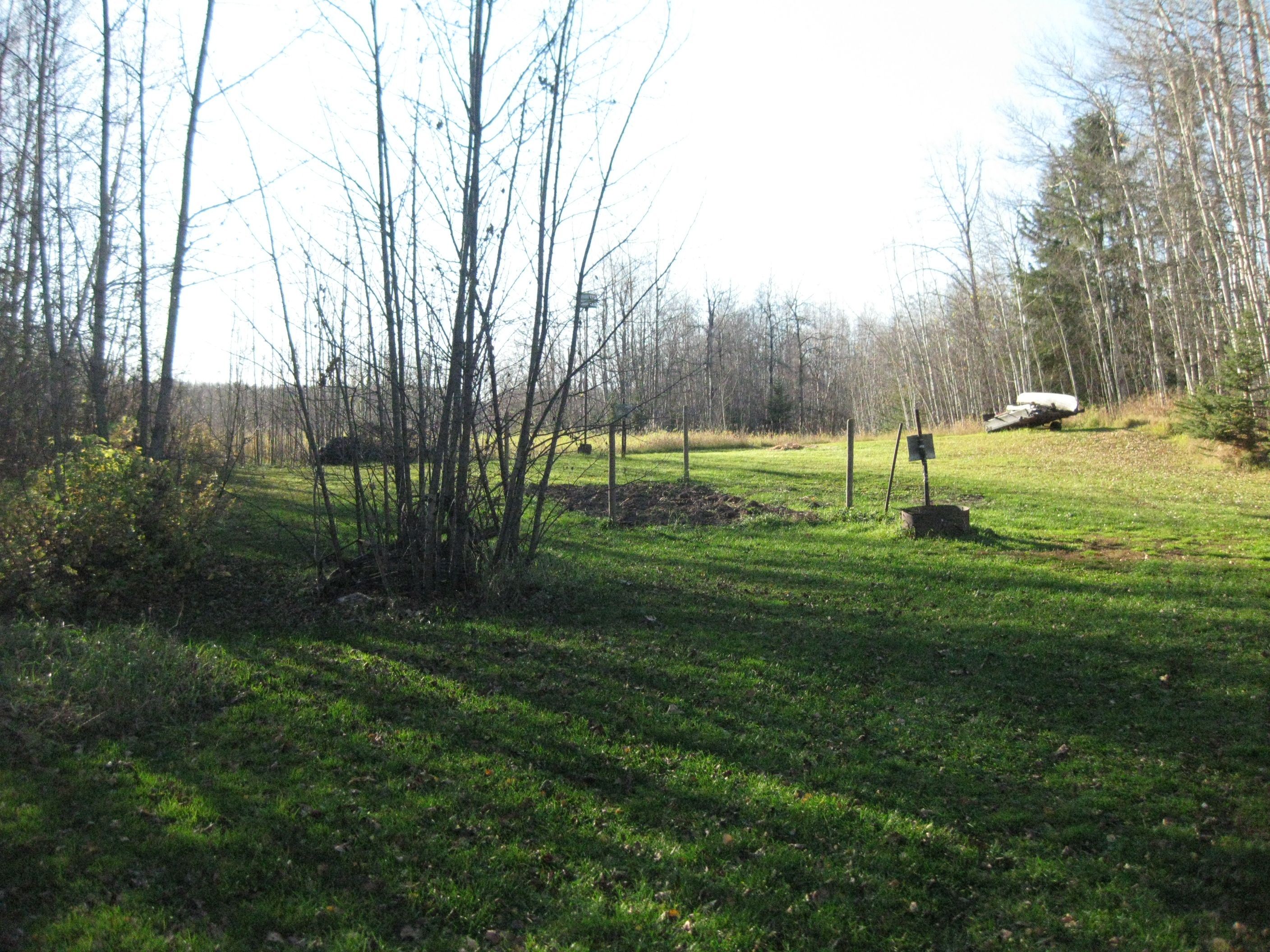

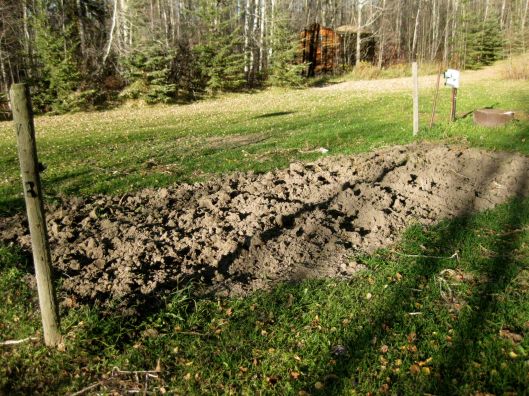

I would like to show you the vegetable garden. When we bought the cabin last fall it was just a little postage stamp of a plot with some potatoes left behind. We dug these up in October and they lasted us until March.

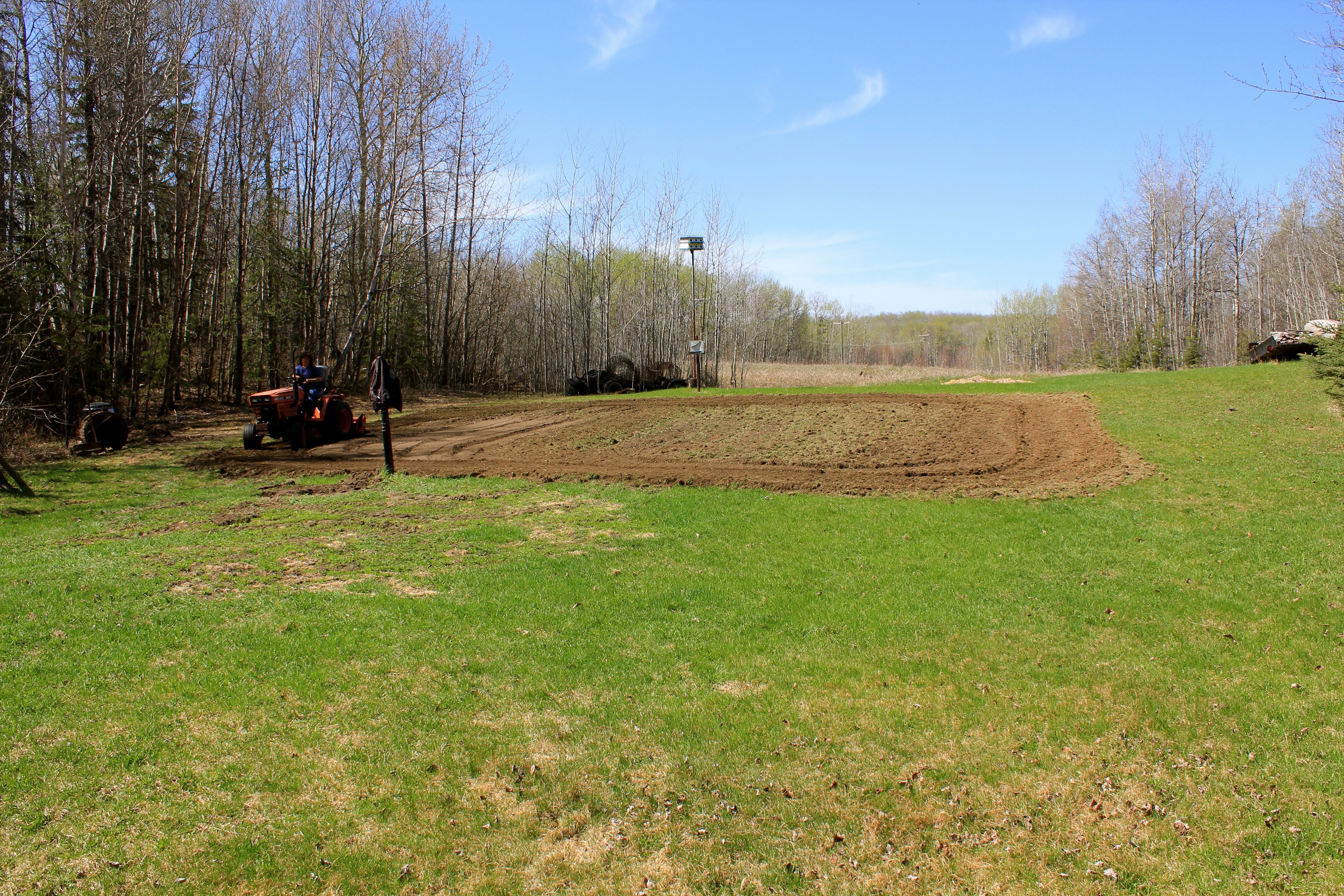

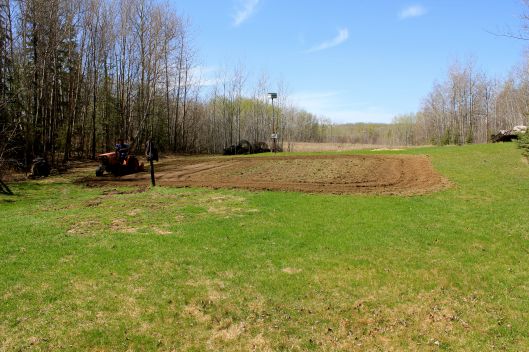

By November, the land was covered in snow and I spent the winter planning my garden, making endless lists and researching ‘deer- and rabbit-resistant gardening’. In May, my wonderful neighbor, K, came over with her tractor and tilled the soil for me, enlarging the garden into it’s current size. The soil is good in this spot and I was told that years ago this used to be a large garden.

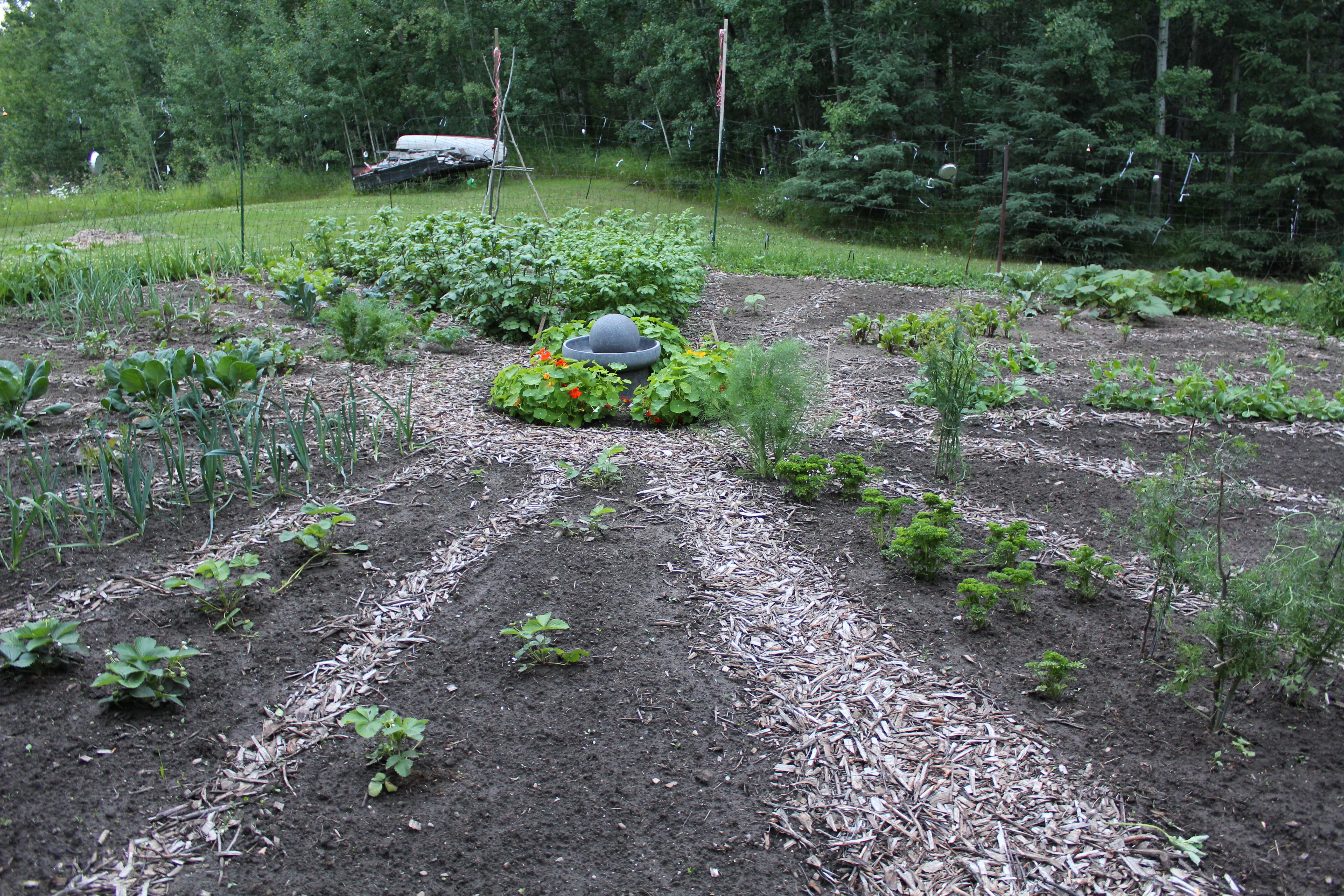

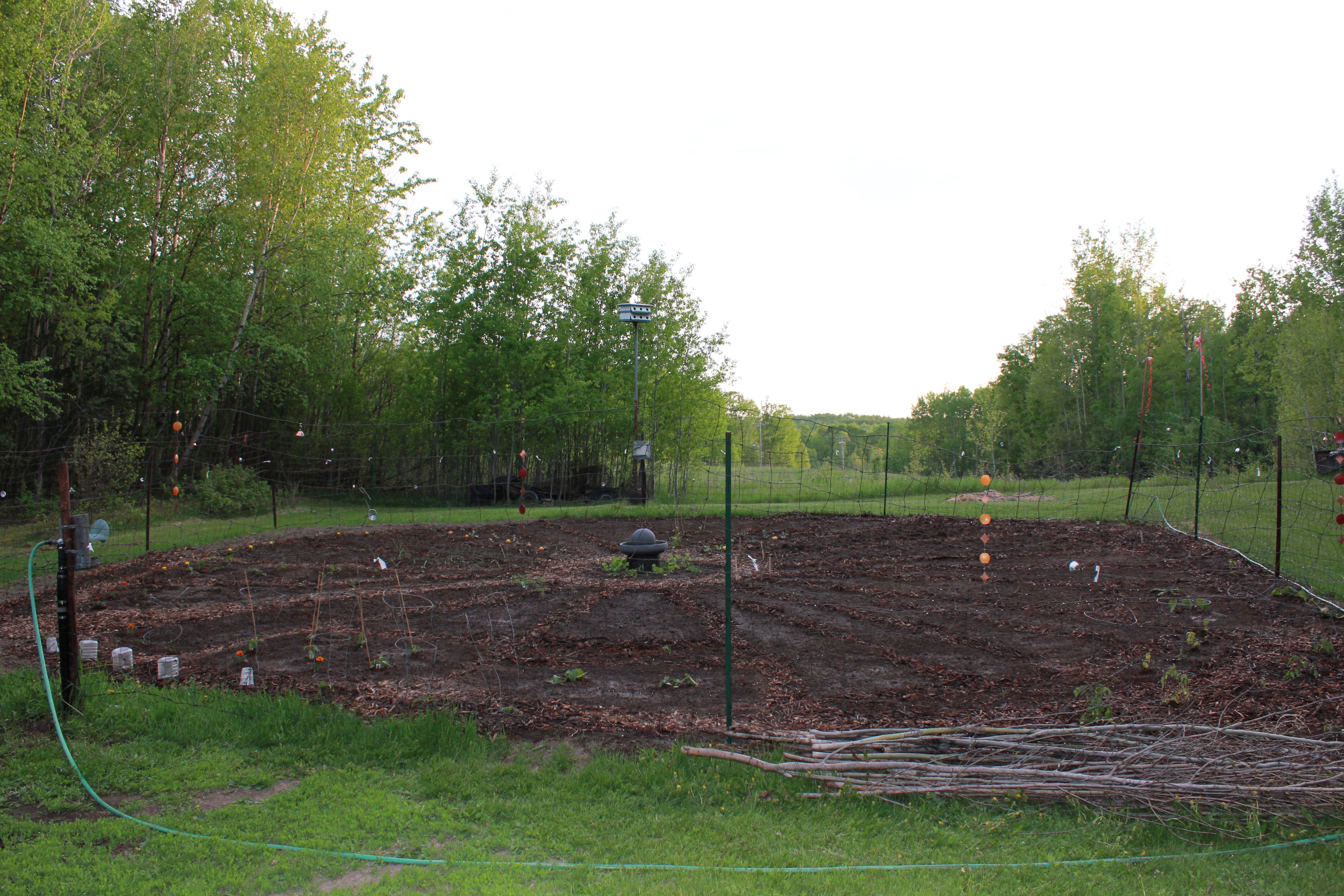

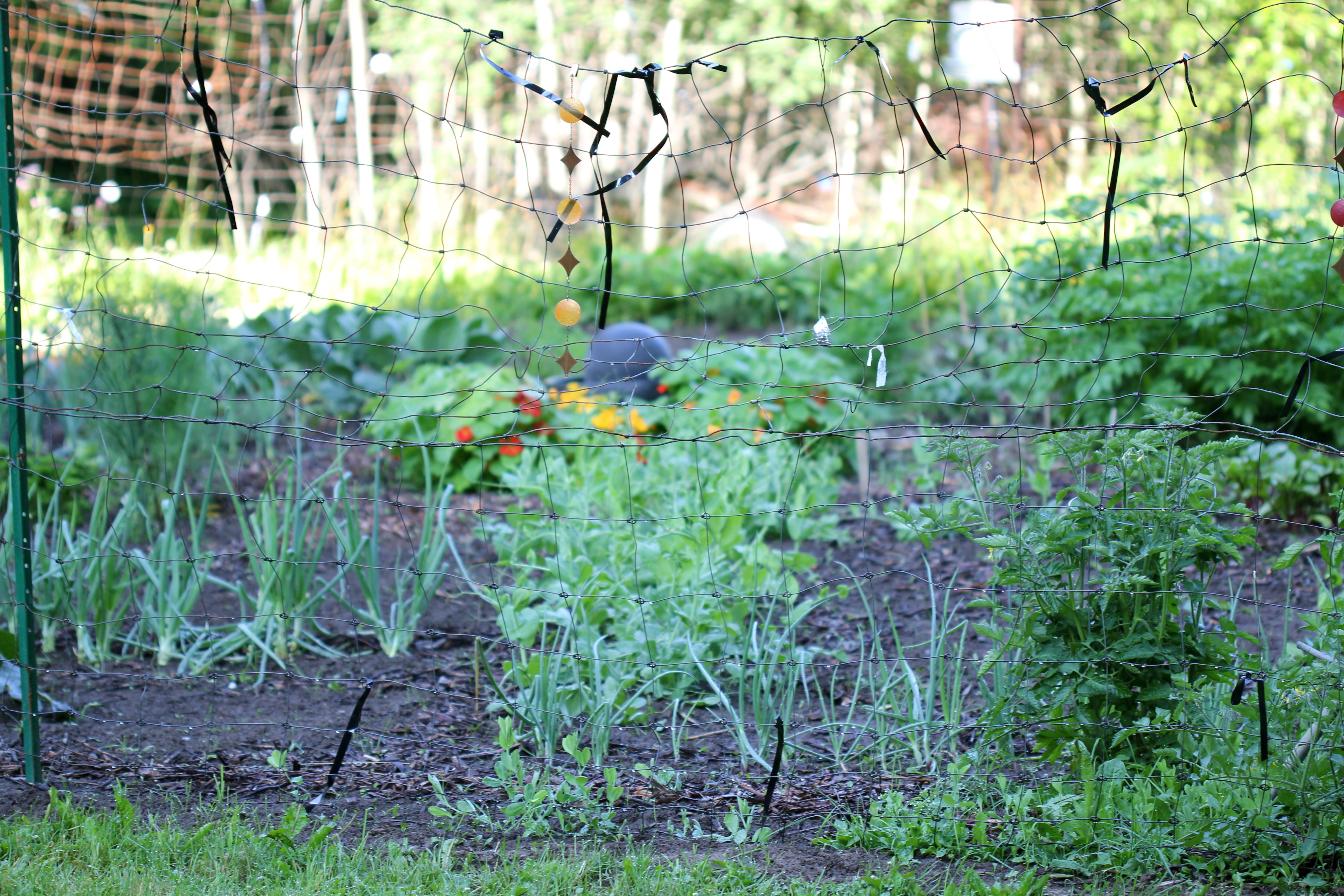

Once tilled, I mapped out a Medicine Wheel design using mulch for the pathways. I added some plants and sowed some seeds. Then I spent an afternoon pounding in large stakes for the fence. My budget was very limited so I used what I could find on the land. I also found some rusty barbed wire fencing in large rolls around the property. I carefully unwound these and wrapped these around the poles, using wire to fasten it to the stakes. I did two rows of fencing, one on top of the other and wired these together. This was tricky as I did this on my own, holding the fence in place with my head while wiring the fencing together with needle nose pliers and being careful not to get scratched with the rusty wire…

I choose a Medicine Wheel design as I wanted to be intentional in my creation of a garden. This place would be set aside as a quiet place for contemplation, a source of nourishment and healing. For some reason, stepping into a circular garden invokes a feeling of reverence and quiet power.

Both the design and use of sacred space are processes that draw on both the conscious and unconscious levels of mind and spirit. We learn as we create and we change as we garden. Let the process inform you spirit. ~Peg Streep

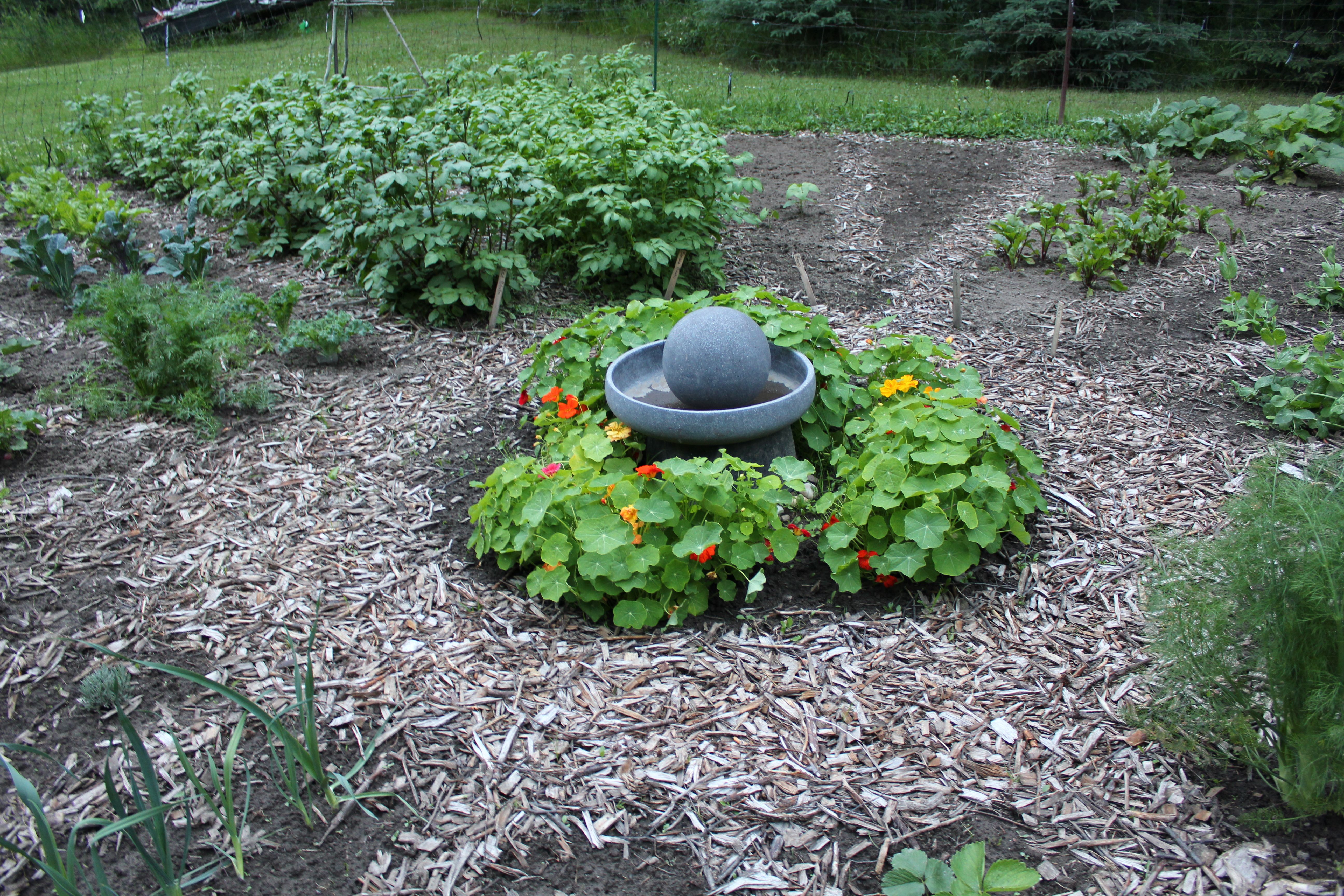

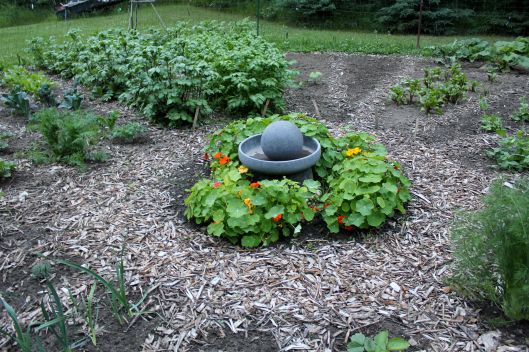

The circle has four quadrants (which were further subdivided into pie-shaped plots) set to the cardinal directions (north, east, south and west). Each direction has a corresponding element (earth, air, fire and water). The center of the circle is a place of concentrated ‘power’ and peace. At the door of the garden is a pile of stones found previously buried in the soil. Visitors are invited to take a stone, envision a prayer or request, wish or blessing, and imagine that they are putting it into the stone. Then they can place the stone in the center bowl. As I spend time each day working in the garden, I meditate, contemplate and pray. I sing songs, I laugh, I dance, I express gratitude for the earth’s abundance. I imagine this good energy being absorbed into the growing plants.

The creation of sacred space- how we set apart and arrange a certain spot and imbue it with reverent feelings… draws us closer to nature and affirms our personal ties with the earth. Medicine Wheel gardens are places for celebrating and teaching. Some go to the Medicine Wheel garden for vision quests, prayer and personal renewal. Others see it as a place to gather together for drumming, fire ceremonies and singing. -E.Barrie Kavasch

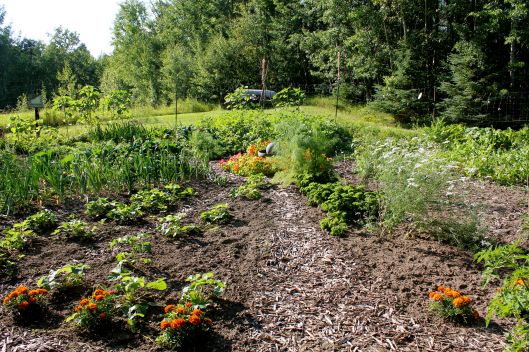

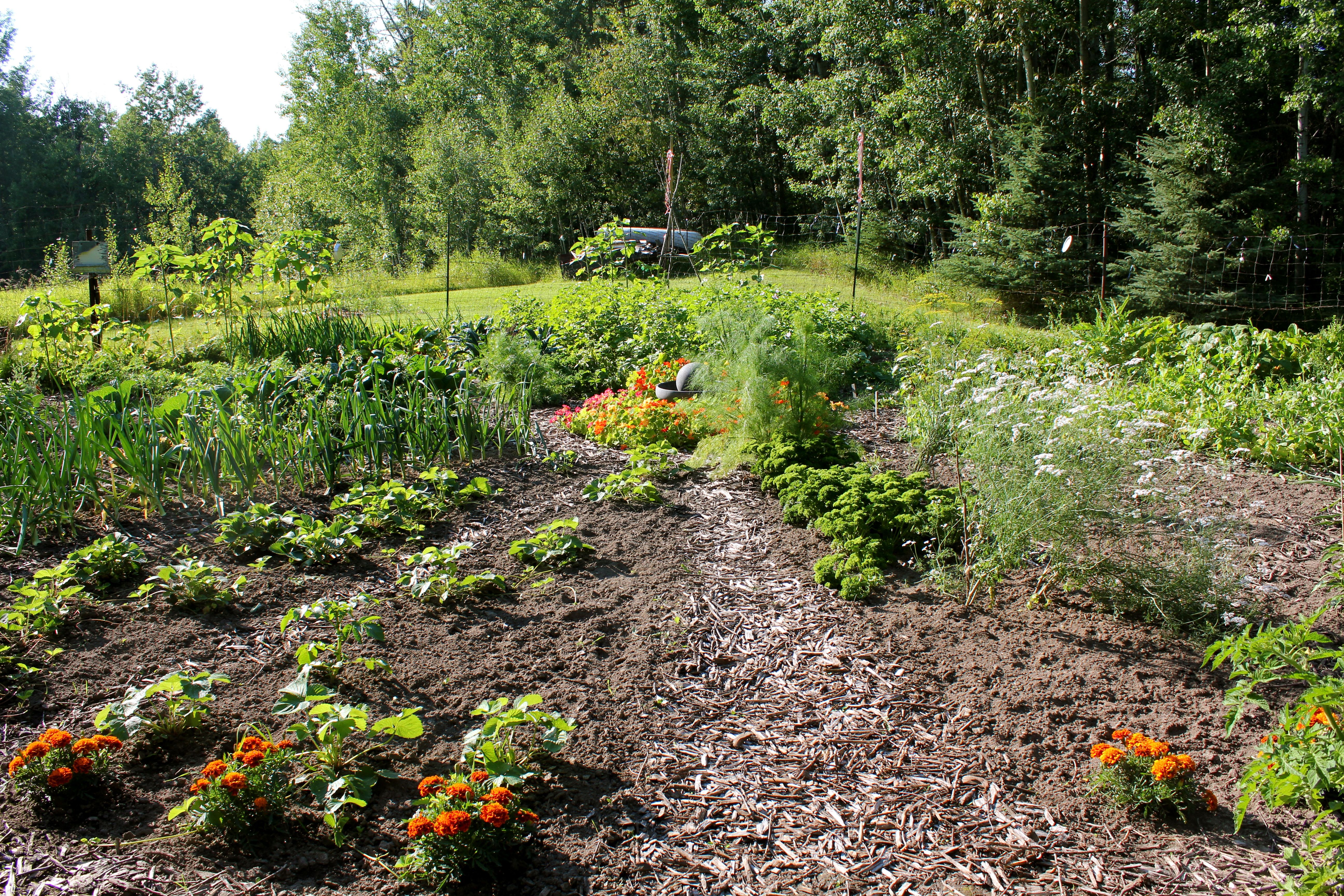

The above shot was just taken today. I love spending time in the garden and taking care of it never feels like a chore. I feel the earth supporting my body as I kneel to work, I listen to the wind and the birds, I feel the sun and sometimes rain on my skin and all of this brings me deep contentment. Today, it was a very hot and sunny day. Here are a few more shots of things growing in the garden…

I am noticing lots of green and yellow in the pictures but very little red. I do have red beets and radishes and red lettuce and potatoes; and soon will also have red peppers, chili peppers and loads of tomatoes, if only we would get more warmer weather. In fact, everything is behind this year due to the cool, wet summer. Perhaps we will have a hot late summer/autumn in time for harvest?

This season marks phase one in the Medicine Wheel garden design. Next year, I will add raised beds and incorporate the four elements into each quadrant (a bowl of stones for earth, prayer flags and wind chimes for air, a small fire bowl for fire, and a bird bath for water). In the meantime, we have a few months of harvest ahead of us. I will show you more pictures of the garden as the summer progresses.
